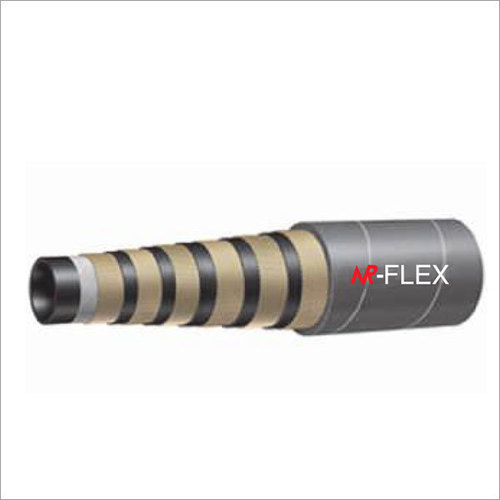

Synthetic Rubber + Wire Braid Hydraulic Hose

Send Inquiry

Request To Call Back

Synthetic Rubber + Wire Braid Hydraulic Hose

Get a Price/Quote

MOQ : 50 Meters

Synthetic Rubber + Wire Braid Hydraulic Hose Specification

Length
Up to 100 meters (customized lengths available) Meter (m)

Usage & Applications
Hydraulic systems, industrial machinery, construction equipment, mining

Size
1/4 inch to 2 inches

Rubber Type
Synthetic Rubber (NBR/EPDM)

Style
Braided

Color
Black

Flame Resistance Level
Meets ISO 8030 standard

Tensile Strength
180-420 MPa (Depending on size and model) Megapascals (MPa )

Density
1.35 Gram per cubic centimeter(g/cm3)

Components
Inner tube, wire braid reinforcement, outer cover

Material
Synthetic Rubber and High Tensile Steel Wire

Weight
Varies with size (approx. 0.2 - 6.5 kg/m) Kilograms (kg)

Hardness
70-90 Shore A

Temperature Resistance
-40C to +100C (up to 125C briefly)

Feature
High flexibility, leak-proof, abrasion resistant, weather resistant

Water Absorption
Negligible

Diameter
6.4 mm to 50.8 mm (Internal Diameter) Millimeter (mm)

Natural Rubber
Blended with synthetic rubber

Tolerance
0.5 mm Millimeter (mm)

Part Type
Hydraulic Hose

Product Type
Wire Braid Hydraulic Hose

Surface Finish
Smooth, Black

Thickness
3.2 mm to 5 mm (Approx.) Millimeter (mm)

Resistance level
High Pressure, Corrosion & Abrasion Resistant

Electrical Conductivity
Antistatic (On Request)

Minimum Bend Radius
Up to 100 mm (Depending on hose size)

Packaging
Coils, pallets, or as per customer requirement

Working Pressure
Up to 445 bar (Depending on size and type)

Reinforcement Type
Single or Double High Tensile Steel Wire Braid

Ozone Resistance
Yes, as per ISO 7326

Cover Type
Oil & Weather Resistant Synthetic Rubber

Marking
Continuous identification marking along the hose length

Inner Tube Material
Oil Resistant Synthetic Rubber

Synthetic Rubber + Wire Braid Hydraulic Hose Trade Information

Minimum Order Quantity
50 Meters

Supply Ability
Meter

Delivery Time
1 Week

About Synthetic Rubber + Wire Braid Hydraulic Hose

Wire Braid Hydraulic Hose

CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils fuels, lubrication, emulsion, hydrocarbons etc.

WORKING TEMPERATURE: From -40°C up to+ 125°C

Specification

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
Inch	mm	mm	mm	BAR	Psi	BAR	Psi	mm	Kg/m
3/4	19.0	28.4	32.1	350	5000	1380	20000	240	1.68
1	25.4	35.2	38.7	350	5000	1380	20000	300	2.24
1-1/4	31.8	41.9	50.2	350	5000	1380	20000	420	3.90
1-1/2	38.1	48.8	57.7	350	5000	1380	20000	500	5.07
2	50.8	63.2	71.5	350	5000	1380	20000	630	7.91

Superior Performance and Safety

Built with high tensile steel wire braid reinforcement, our hoses surpass industry safety standards by delivering burst pressures up to four times their rated working pressure. The robust design ensures leak-proof operation and durability, even in high-pressure applications, increasing both safety and productivity in hydraulic and industrial machinery.

Versatile Applications and Customization

Wire Braid Hydraulic Hoses are widely used across hydraulic systems, industrial machinery, construction equipment, and mining operations. Available in sizes ranging from 1/4 inch to 2 inches, and customizable lengths up to 100 meters, these hoses offer the flexibility to fit a wide variety of requirements. Packaging and identification marking are tailored to meet client needs.

Durable Construction and Environmental Resistance

The oil and weather-resistant synthetic rubber cover, combined with an oil-resistant inner tube, ensures longevity even in harsh environments. Meeting ISO standards for ozone and flame resistance, and featuring abrasion and corrosion-resistant materials, these hoses maintain integrity and performance under demanding conditions.

FAQs of Wire Braid Hydraulic Hose:

Q: How is the Wire Braid Hydraulic Hose constructed for durability and high pressure?

A: This hose features a robust inner tube made of oil-resistant synthetic rubber, reinforced by single or double layers of high tensile steel wire braid. The exterior synthetic rubber cover provides resistance against oil, weather, abrasion, and ozone. This sophisticated construction enables the hose to withstand working pressures up to 445 bar and burst pressures four times higher, making it suitable for high-pressure hydraulic systems.

Q: What are the main uses and industries for Wire Braid Hydraulic Hoses?

A: These hoses are primarily used in hydraulic systems, industrial machinery, construction equipment, and mining operations. Their high flexibility, leak-proof design, and resistance to abrasion make them ideal for situations demanding both high performance and reliability in fluid power transmission.

Q: When should I choose single versus double wire braid reinforcement?

A: Single wire braid hoses are typically used for lower pressure applications, while double wire braid reinforcement is recommended for higher pressure requirements where enhanced durability and greater burst strength are desired. Selection depends on the specific working pressure and application needs.

Q: Where can these hydraulic hoses be installed, and what customization options are available?

A: Wire Braid Hydraulic Hoses can be installed in any hydraulic or fluid transfer system where extreme pressure, flexibility, and environmental resistance are necessary. They are available in multiple sizes, lengths (up to 100 meters), and packaging formats including coils and pallets, with further options for customized identification marking and electrical antistatic properties upon request.

Q: What is the process for ensuring hose quality and compliance with ISO standards?

A: These hoses are manufactured using high quality synthetic rubber (NBR/EPDM) and steel wire, conforming to ISO standards for ozone resistance (ISO 7326) and flame resistance (ISO 8030). Each hose undergoes rigorous testing for burst pressure, durability, and resistance to corrosion and abrasion, ensuring reliable performance and safety in challenging environments.

Q: How does the hoses cover material contribute to its weather and corrosion resistance?

A: The outer cover is made from oil and weather-resistant synthetic rubber, which protects against environmental factors like ozone, UV exposure, and harsh weather conditions. This material, along with blended natural and synthetic rubber composition, ensures long-lasting resistance to corrosion and abrasion even in demanding outdoor or industrial environments.
