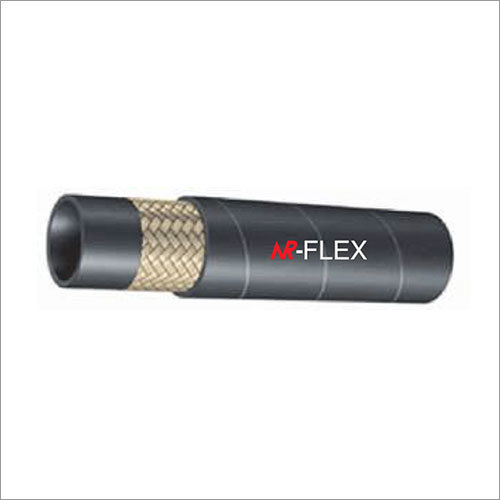

High-strength Wire Braid Hydraulic Hose

Get a Price/Quote

MOQ : 50 Meters

High-strength Wire Braid Hydraulic Hose Specification

Components
Inner tube, Reinforcement layer (wire braid), Outer cover

Tolerance
As per SAE/DIN Standards

Tensile Strength
High tensile steel wire

Style
Single/Double Wire Braid Reinforcement

Color
Black

Resistance level
Oil, Weather, and Abrasion Resistance

Feature
Abrasion and Weather Resistant, High Pressure Compatible

Hardness
70 5 Shore A

Size
1/4 inch to 2 inches (customizable)

Diameter
Internal Diameter: 6.4 mm 51 mm Millimeter (mm)

Part Type
Hydraulic Flexible Hose

Material
Synthetic Rubber with High Tensile Steel Wire

Flame Resistance Level
Not flame resistant unless specified

Surface Finish
Smooth or wrapped

Product Type
Wire Braid Hydraulic Hose

Water Absorption
Low, as per hydraulic hose standards

Density
1.25 Gram per cubic centimeter(g/cm3)

Temperature Resistance
-40C to +100C (up to +125C for some oils)

Rubber Type
Synthetic Nitrile Rubber (NBR)

Thickness
Varies by size, typical 2 - 5 mm Millimeter (mm)

Usage & Applications
Hydraulic fluid conveyance in industrial and mobile equipment

Length
Standard: 50 m / Customized Meter (m)

Natural Rubber
Synthetic rubber compound (Typically NBR, not natural rubber)

Working Pressure
Up to 6000 psi (varies by size/spec)

End Fitting
Compatible with crimped hydraulic fittings

Cover Material
Abrasion and Ozone Resistant Synthetic Rubber

Minimum Bending Radius
As per SAE/EN specifications

Ozone Resistance
Excellent

Reinforcement Type
One or Two High Tensile Steel Wire Braids

High-strength Wire Braid Hydraulic Hose Trade Information

Minimum Order Quantity
50 Meters

Supply Ability
Meter

Delivery Time
1 Week

About High-strength Wire Braid Hydraulic Hose

Wire Braid Hydraulic Hose

CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils fuels, lubrication, emulsion, hydrocarbons etc.

WORKING TEMPERATURE: From -40°C up to+ 100°C

Specification

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
Inch	mm	mm	mm	BAR	Psi	BAR	Psi	mm	Kg/m
1/4	6.4	11.1	13.4	225	3270	100	14503	100	0.21
5/16	7.9	12.7	15.0	220	3120	880	12280	115	0.24
3/8	9.5	15.1	17.4	180	2610	720	10280	130	0.33
1/2	12.7	18.3	20.6	160	2320	640	9180	180	0.41
5/8	15.9	21.4	23.7	130	1890	520	7420	200	0.45
3/4	9.0	25.4	27.7	105	1530	420	6000	240	0.58
1	25.4	33.3	35.6	88	1280	350	5020	300	0.88
1-1/4	31.8	40.5	43.5	63	920	250	3600	420	1.23
1-1/2	38.1	46.8	50.6	50	730	200	2860	500	1.51
2	50.8	60.2	64.0	40	580	160	2280	630	1.97

Superior Pressure and Durability

Designed with advanced reinforcement using high tensile steel wire braids, this hydraulic hose withstands extreme pressure, offering burst levels at a minimum four times its working pressure. Its abrasion and ozone-resistant synthetic rubber cover ensures long service life in tough industrial and mobile applications, even under harsh weather conditions.

Flexible and Customizable

Wire Braid Hydraulic Hoses are available in a wide range of diametersfrom 1/4 inch to 2 inchesand standard lengths up to 50 meters, with custom sizes upon request. The reinforced design grants a controlled minimum bending radius per SAE/EN standards, providing adaptability for complex routing and installation.

Compatibility and Application

Featuring compatibility with standard crimped hydraulic fittings, this hose is ideal for high-pressure hydraulic fluid transfer in machinery, construction, agricultural equipment, and more. Its inner synthetic nitrile rubber tube prevents oil absorption, while the rugged outer cover handles severe external wear, making it a preferred choice for OEMs, distributors, and maintenance operations.

FAQs of Wire Braid Hydraulic Hose:

Q: How is the burst pressure of the wire braid hydraulic hose determined?

A: Burst pressure is established by testing in accordance with SAE or EN hydraulic standards; the hose is engineered to withstand a minimum of four times its working pressure, ensuring safety and reliability during high-pressure hydraulic operations.

Q: What applications are most suitable for this hydraulic hose?

A: This wire braid hydraulic hose is ideal for hydraulic fluid conveyance in high-pressure systems such as industrial machinery, agricultural equipment, construction machinery, and mobile hydraulic units, where durability, flexibility, and resistance to abrasion and weather are required.

Q: When should I use single versus double wire braid reinforcement?

A: Single wire braid reinforcement suits moderate-pressure hydraulic applications, while double wire braid construction is recommended for high-pressure environments, offering greater strength and enhanced safety margins in demanding operational settings.

Q: Where can the wire braid hydraulic hose be installed?

A: It can be installed in indoor and outdoor environments that demand high resistance to oil, abrasion, and ozone. Typical placements include hydraulic circuits in factories, machinery maintenance areas, and mobile equipment, provided installation meets SAE/EN bending radius specifications.

Q: What is the process for selecting and installing end fittings on this hose?

A: Select end fittings compatible with crimped hydraulic connections specified for your hose size and application. Professional crimping ensures a secure, leak-free attachment, adhering to hydraulic standards for pressure ratings and installation procedures.

Q: How does the hose benefit users in terms of resistance and longevity?

A: The synthetic nitrile rubber compound, combined with a high tensile wire braid, offers exceptional resistance to oil, abrasion, and ozone. This results in longer service life, reduced maintenance costs, and reliable performance in both extreme weather and high-pressure conditions.

Q: What are the temperature and chemical resistance capabilities of this hose?

A: The hose operates effectively in temperatures from -40C up to +100C, and up to +125C for certain hydraulic oils. Its synthetic rubber inner tube resists oil and weathering, and is engineered for low water absorption and maintained flexibility across temperature extremes.
