High Abrasion Resistance Wire Braid Hydraulic Hose

Get a Price/Quote

MOQ : 50 Meters

High Abrasion Resistance Wire Braid Hydraulic Hose Specification

Feature
Flexible, Weather & abrasion resistant, Leak proof

Length
Standard rolls of 50m/100m or as required Meter (m)

Tolerance
0.3 mm (on diameter) Millimeter (mm)

Diameter
6 mm to 50 mm (inner diameter options) Millimeter (mm)

Width
Standard as per SAE/EN specifications

Density
1.25 Gram per cubic centimeter(g/cm3)

Rubber Type
Nitrile (NBR)/SBR/CR synthetic rubber

Temperature Resistance
-40C to +100C (up to +125C for short intervals)

Style
Reinforced with high-tensile steel wire braid

Surface Finish
Smooth or wrapped (customizable)

Product Type
Wire Braid Hydraulic Hose

Thickness
4 mm to 8 mm (depending on size) Millimeter (mm)

Flame Resistance Level
Meets ISOSAE flame resistance standards

Components
Inner tube, steel wire braid reinforcement, outer cover

Hardness
Shore A 70-85

Color
Black

Usage & Applications
Hydraulic systems, industrial machinery, construction equipment

Resistance level
Excellent oil, abrasion and weather resistance

Natural Rubber
Synthetic rubber used (NBR/CR/SBR based as per spec)

Material
Inner tube: oil resistant synthetic rubber; Reinforcement: single or double steel wire braid; Cover: weather resistant synthetic rubber

Size
1/4 inch to 2 inch (varies as per requirement)

Part Type
Hydraulic Hose

Water Absorption
Low

Marking
White/colored ink jet printed specification along hose length

Working Pressure
Up to 400 bar (varies with diameter and braid layer)

Fittings Compatibility
Compatible with standard hydraulic fittings (crimped or reusable)

Electrical Conductivity
Non-conductive outer cover (unless specified conductive)

Reinforcement Type
Single or Double high-tensile braided steel wire

Ozone Resistance
Excellent, suitable for outdoor use

Packaging
Coiled and packed in rolls, shrink wrapped or as per customer request

Minimum Bend Radius
As per EN/SAE hydraulic hose standards

High Abrasion Resistance Wire Braid Hydraulic Hose Trade Information

Minimum Order Quantity
50 Meters

Supply Ability
Meter

Delivery Time
1 Week

About High Abrasion Resistance Wire Braid Hydraulic Hose

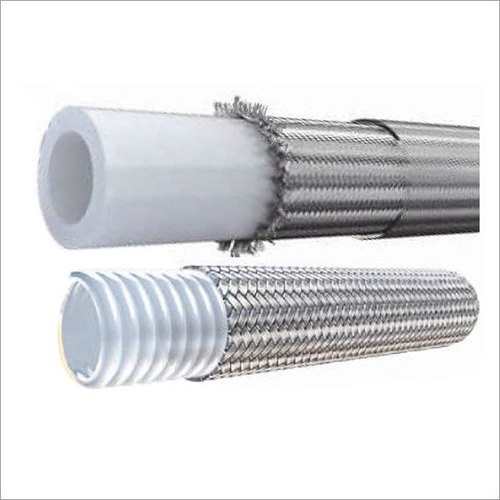

Wire Braid Hydraulic Hose

CONSTRUCTION:

Tube: High Temperature Resistant & Chemical corrosion resistant PTFE material.
Cover: Stainless steel wire braid.
Temperature Range : Medium From -60C up to+260C

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils fuels, lubrication, emulsion, hydrocarbons etc.

Specification

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius
Inch	mm	mm	mm	BAR	Psi	BAR	Psi	mm
1/4	4.65 5.16	7.32 8.43	0.89	299	4330	897	13000	71
5/16	5.97 6.81	8.26 9.42	0.76	276	4000	828	12000	76
3/8	7.54 8.38	10.36 11.63	0.76	230	3330	690	1000	127
1/2	9.93 10.64	12.78 14.10	0.89	183	2660	552	8000	133
5/8	12.57 13.34	12.75 16.76	0.76	161	2330	483	7000	177
3/4	15.24 16.51	18.62 20.14	0.76	138	2000	414	6000	203
1	21.46 22.99	24.64 26.95	0.89	103	1500	310	4500	240
1-1/4	27.80 29.40	31.90 33.50	1	41	600	172	2500	406

Reinforced Design for Extreme Pressure Applications

Utilizing high-tensile braided steel wire, the hose is available with single or double reinforcement to meet various operational demands. This structure ensures the hose maintains integrity under extraordinarily high pressures, with burst ratings at a minimum of four times its working pressure. Such engineering is essential for reliability in hydraulic-intensive environments.

Exceptional Resistance for Outdoor Performance

The wire braid hydraulic hose features a robust synthetic rubber cover, guaranteeing resistance to oil, abrasion, and ozone. Designed for extended outdoor use, it handles harsh weather as well as rigorous industrial conditions. The non-conductive outer cover enhances safety near electrical equipment unless a conductive version is specified.

Flexible Installation Across Sizes and Hose Fittings

Available from 1/4 inch to 2 inch diameters and standard 50m/100m rolls, this hose is made for installation convenience in varied settings. It can be fitted with both crimped and reusable hydraulic fittings, suiting maintenance requirements and ensuring dependable, leak-proof connections for most equipment.

FAQs of Wire Braid Hydraulic Hose:

Q: How does the wire braid hydraulic hose ensure reliability in high-pressure applications?

A: The hose features single or double layers of high-tensile braided steel wire reinforcement, which provides exceptional strength and allows it to handle working pressures up to 400 bar. The burst pressure is always at least four times the working pressure, ensuring consistent reliability and safety under extreme hydraulic loads.

Q: What are the benefits of using synthetic rubber in the hose construction?

A: The synthetic rubber, composed of NBR/SBR/CR blends, offers excellent oil, weather, and abrasion resistance. This results in a longer lifespan, low water absorption, and durability under harsh environmental conditions, making the hose suitable for demanding industrial and outdoor operations.

Q: Where can wire braid hydraulic hose be used effectively?

A: This hydraulic hose is ideal for hydraulic systems, industrial machinery, and construction equipment. Its durable construction and compliance with EN/SAE standards allow it to perform reliably in both indoor and outdoor settings, particularly where exposure to oils, pressure, and variable weather is expected.

Q: What types of hydraulic fittings are compatible with this hose?

A: Wire braid hydraulic hoses are compatible with standard hydraulic fittings, including crimped and reusable types. This ensures quick installation and secure, leak-proof connections across machinery and equipment, providing flexibility for repair and maintenance.

Q: How is the hose packaged and supplied for distribution or export?

A: Hoses are coiled and packed in rolls, typically shrink-wrapped for protection, and can be customized as per customer request. Standard lengths are 50m or 100m, with options to meet specific application requirements for distributors, exporters, manufacturers, and suppliers.

Q: What safety and performance standards does the hose meet?

A: The hose is manufactured according to EN, SAE, and ISO specifications; it features flame resistance, low thermal conductivity, and minimal water absorption. The excellent ozone and abrasion resistance further ensure safe and reliable use in challenging environments.

Q: When should the hoses minimum bend radius be considered during installation?

A: The minimum bend radius, defined by EN/SAE hydraulic hose standards, should always be observed during installation to prevent kinking, reduce strain on the hose structure, and maintain optimal flow without compromising durability or performance.
