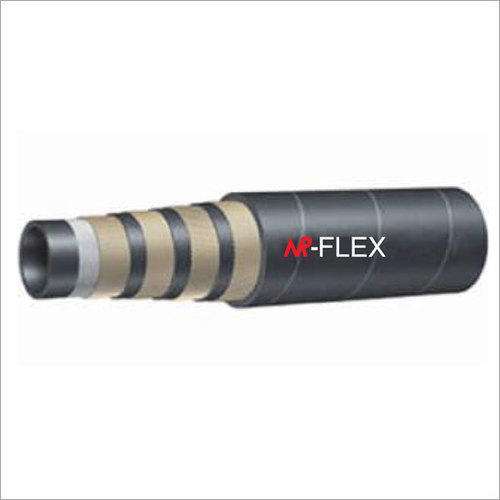

Abrasion & Weather Resistant Wire Braid Hydraulic Hose

Send Inquiry

Request To Call Back

Abrasion & Weather Resistant Wire Braid Hydraulic Hose

Get a Price/Quote

MOQ : 50 Meters

Abrasion & Weather Resistant Wire Braid Hydraulic Hose Specification

Natural Rubber
Blended synthetic and natural rubber layer

Water Absorption
Minimal

Feature
High pressure resistance, Flexibility, Long service life

Surface Finish
Smooth, wear-resistant

Components
Inner tube, wire braid reinforcement, outer rubber cover

Product Type
Wire Braid Hydraulic Hose

Usage & Applications
High-pressure hydraulic systems, industrial machinery, construction equipment

Resistance level
Excellent resistance to oil, abrasion, and weather

Material
Synthetic rubber with high tensile steel wire braid reinforcement

Width
Standard widths available upon request

Density
1.6 Gram per cubic centimeter(g/cm3)

Part Type
Hydraulic hose

Diameter
6.4 mm to 51 mm (ID range) Millimeter (mm)

Rubber Type
Synthetic rubber (NBR, SBR blends)

Color
Black

Thickness
Varies by size; typically 3 mm to 10 mm Millimeter (mm)

Temperature Resistance
-40C to +100C (continuous); up to 125C (intermittent use)

Tensile Strength
Between 180-330 MPa (depending on grade) Megapascals (MPa )

Length
Standard lengths up to 100 meters Meter (m)

Size
1/4 inch to 2 inch (ID)

Hardness
705 Shore A

Flame Resistance Level
Meets SAE and ISO flame resistance standards

Style
Reinforced, Braided

Minimum Bend Radius
Specified as per size and model, e.g., 100mm for 1/2

Fitting Compatibility
Compatible with standard hydraulic fittings (crimped or swaged)

Outer Cover Properties
Resistant to petroleum oils, abrasion, ozone, and aging

Reinforcement Type
Single or double high-tensile steel wire braid

Abrasion & Weather Resistant Wire Braid Hydraulic Hose Trade Information

Minimum Order Quantity
50 Meters

Supply Ability
Meter

Delivery Time
1 Week

About Abrasion & Weather Resistant Wire Braid Hydraulic Hose

Wire Braid Hydraulic Hose

CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover

APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils fuels, lubrication, emulsion, hydrocarbons etc.

WORKING TEMPERATURE: From -40°C up to+ 121°C

Specification

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
Inch	mm	mm	mm	BAR	Psi	BAR	Psi	mm	Kg/m
1/2	12.7	20.2	24	415	6090	166	24000	230	0.85
5/8	15.9	23.8	28.2	350	5075	140	20000	250	1.11
3/4	19.0	28.4	32	120	3092	168	24000	280	1.61
1	25.4	35.2	38.6	380	5500	152	22000	340	2.00
1-1/4	31.8	41.9	45.8	325	4700	130	18800	460	2.46
1-1/2	38.1	48.8	53.3	290	4200	116	16800	560	3.35
2	50.8	63.2	68.1	250	3600	100	14400	700	4.98

Heavy-Duty Steel Wire Braid Reinforcement

Each hose features either a single or double layer of high-tensile steel wire braid, ensuring superior strength and reliability in high-pressure hydraulic systems. This design provides durability and minimizes the risk of hose failure under rigorous use. The reinforcement adheres to both international and industry conformance standards, guaranteeing dependable performance where it matters most.

Exceptional Resistance and Longevity

The outer cover of the hose, made from a blend of synthetic and natural rubber, is engineered for extreme resistance to petroleum oils, abrasion, ozone, and tough weather conditions. This robust construction prolongs hose life, reduces maintenance downtime, and safeguards hydraulic systems in challenging industrial and construction environments.

Flexible Application Across Industries

With sizes ranging from 1/4 inch to 2 inches, these hoses are compatible with standard hydraulic fittings and suitable for a wide array of applications, from industrial machinery to construction equipment. Standard widths and lengths up to 100 meters make them adaptable for diverse requirements, while their minimal water absorption and low thermal conductivity ensure operational reliability.

FAQs of Wire Braid Hydraulic Hose:

Q: How does the wire braid reinforcement enhance the performance of the hydraulic hose?

A: The single or double high-tensile steel wire braid reinforcement significantly boosts the hoses strength and pressure handling capacity, making it suitable for high-pressure hydraulic systems. This reinforcement typology helps prevent hose expansion under pressure and extends its service life in demanding environments.

Q: What standards do these hydraulic hoses comply with?

A: Wire Braid Hydraulic Hoses meet stringent standards including SAE 100 R1AT/R2AT, EN 853 1SN/2SN, DIN EN 857 1SC/2SC, and conform to ISO 1307 tolerances. This ensures reliable performance, safety, and interchangeability in global hydraulic applications.

Q: When should I choose a hose with a double wire braid over a single braid?

A: Double wire braid hoses are recommended for applications requiring higher working pressures and more robust durability compared to single braid variants. They are ideal for heavy-duty hydraulic machinery and situations with pulsating or shock pressure conditions.

Q: Where can these hoses be installed or used?

A: These hoses are well-suited for installation in a variety of locations, including industrial hydraulic systems, construction equipment, agricultural machinery, and other high-pressure fluid transfer systems that demand strength, flexibility, and reliability.

Q: What process is involved in connecting these hoses to fittings?

A: The hoses are designed for compatibility with standard hydraulic fittings, which can be attached using crimping or swaging processes. This ensures a secure, leak-resistant connection essential for maintaining hydraulic system integrity.

Q: How does the outer rubber cover benefit the hoses lifespan and safety?

A: The outer cover, made from a blend of synthetic and natural rubber, provides excellent resistance to petroleum oils, abrasion, ozone exposure, and adverse weather. This not only extends the hoses lifespan but also enhances safety by preventing premature wear and potential hose failure.

Q: What advantages do these hoses offer to users in terms of installation and performance?

A: Users benefit from the hoses flexible design, high-pressure resistance, and adherence to global standards, which simplify installation and ensure reliable operation in harsh conditions. The availability in a wide range of sizes and standard lengths further adds to their versatility and ease of use.
